Grooved dry alarm check valve with trim Profit by Piping Logistics DGACV alarm valves
Zoom
  • Grooved dry alarm check valve with trim Profit by Piping Logistics DGACV alarm valves

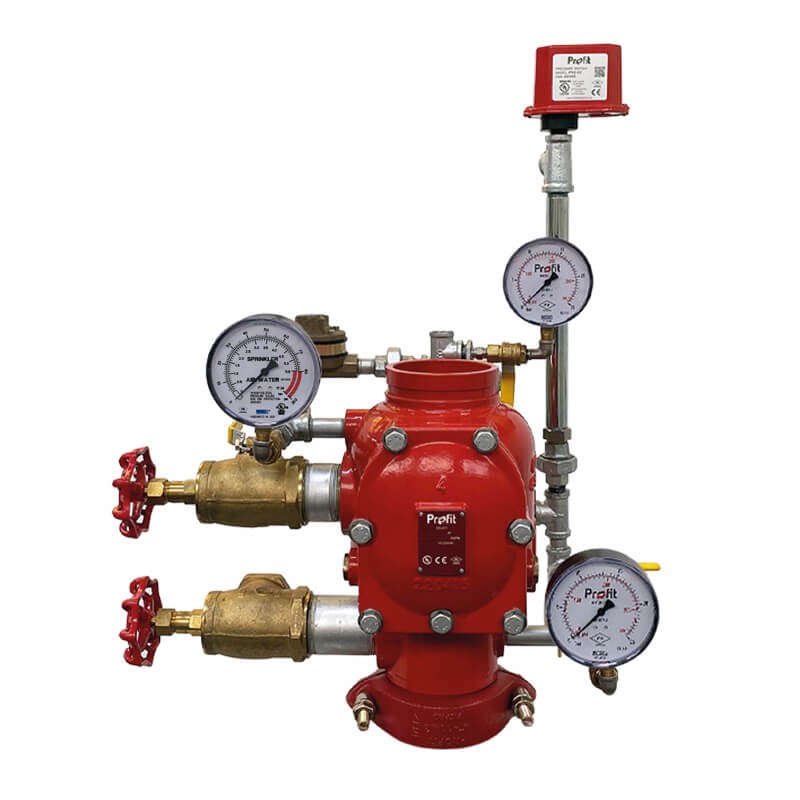

Dry alarm valve grooved with trim

Profit grooved alarm valves type DGACV are check valves of the hinged type operating on low air pressure. They automatically trigger an electrical and/or hydraulic alarm when one or more sprinkler heads are activated in dry sprinkler systems. Various optional items are also available.

  • Available sizes: DN80 - DN200 (3” – 8”).
  • Working temperature: +1°C to +50°C.
  • Installation by use of two Profit grooved mechanical couplings.
  • Working pressure (water):
    - Minimum 0,21 MPa / 2,1 bar / 30 psi.
    - Maximum 2,07 MPa / 20,7 bar / 300 psi.
  • Suitable for use in vertical piping.
  • FM approved / CE certified / UL certified.

Also available:
- air pressure maintenance device
- dry accelerator
- dry accelerator with trim
- pressure switch

FM Certification
certification_ce
UL Certification
